DeWALT, 7415SD1-PWR, Expansion Wedge Anchor, Series: SD1, 3/8 in Diameter, 3-3/4 in Overall Length, 2-3/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 1-3/4 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength

ITEM FEATURES:

• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading
• Nominal drill bit diameter same as Anchor diameter

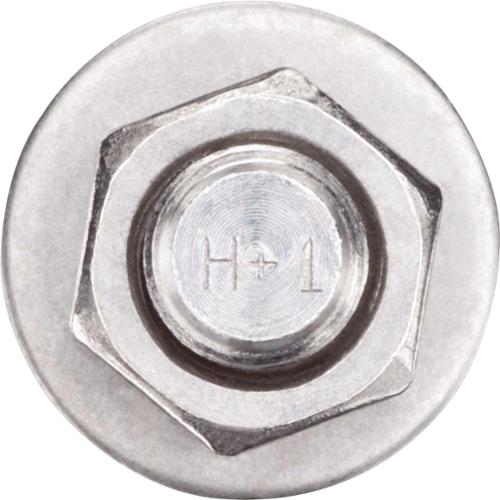

• Length ID code and identifying marking stamped on head of each Anchor
• Ultimate load capacity - 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi, 3100 lb tensile strength when embedded in 4000 psi normal-weight concrete
• Anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete
• Suitable base materials include normal-weight concrete, structural sand-lightweight
