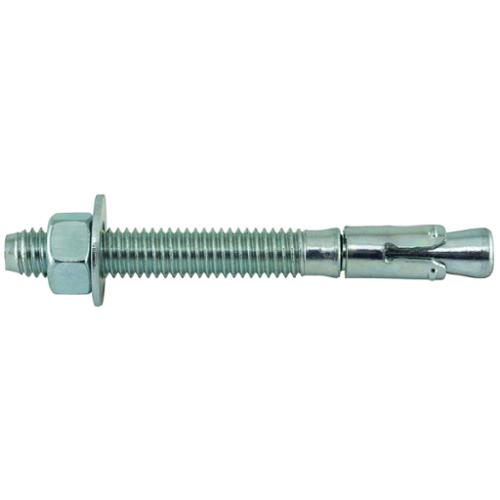

DeWALT, 7414SD1-PWR, Wedge Anchor, Expansion, Series: SD1, 3/8 in Diameter, 3-1/2 in Overall Length, 2-1/8 in Thread Length, Carbon Steel, Zinc Plated, 1-5/8 in Minimum Embedment Depth, 3/8 in Drill, 3/8-16 Thread, Threaded Stud Head, UNC Thread, 1-1/2 in Maximum Work Thickness, 2540 lb Shear Strength, 3100 lb Tensile Strength

ITEM FEATURES:

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading ultimate pullout 5440 lb
• Normal weight concrete, structural sand-light weight concrete, concrete over steel deck and grouted concrete masonry are applicable materials
• Ultimate load capacity: 2240 lb tensile strength when embedded in 2500 psi, 2685 lb tensile strength when embedded in 3000 psi and 3100 lb tensile strength when embedded in 4000 psi compressive strength concrete
