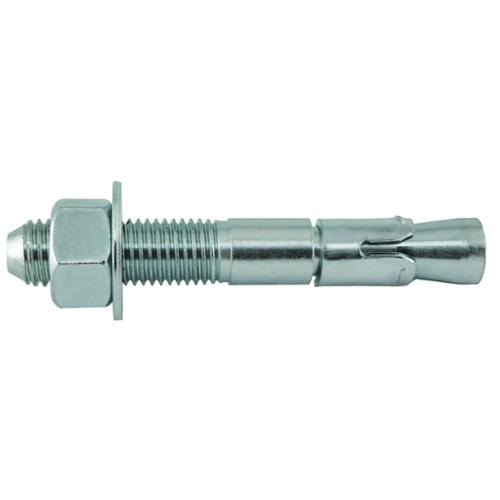

DeWALT, 7450SD1-PWR, Expansion Wedge Anchor, Series: SD1, 7/8 in Diameter, 6 in Overall Length, 2-3/4 in Thread Length, Carbon Steel, Zinc Plated, 4-1/2 in Minimum Embedment Depth, 7/8 in Drill, 7/8-9 Thread, Threaded Stud Head, UNC Thread, 1-5/8 in Maximum Work Thickness, 11690 lb Shear Strength, 15125 lb Tensile Strength

ITEM FEATURES:

• Consistent performance in high and low strength concrete
• Anchor can be installed through standard fixture holes
• Anchor design allows for follow-up expansion after setting under tensile loading
• Nominal drill bit diameter same as Anchor diameter
• Length ID code and identifying marking stamped on head of each Anchor
• Ultimate load capacity: 9120 lb tensile strength when embedded in 2500 psi, 10005 lb tensile strength when embedded in 3000 psi, 11555 lb tensile strength when embedded in 4000 psi and 19470 lb tensile strength when embedded in 6000 psi compressive strength concrete
• 3/4 in nut height
• 1-5/16 in wrench
• 175 ft-lbf installation torque
• 1 in fixture clearance hole
