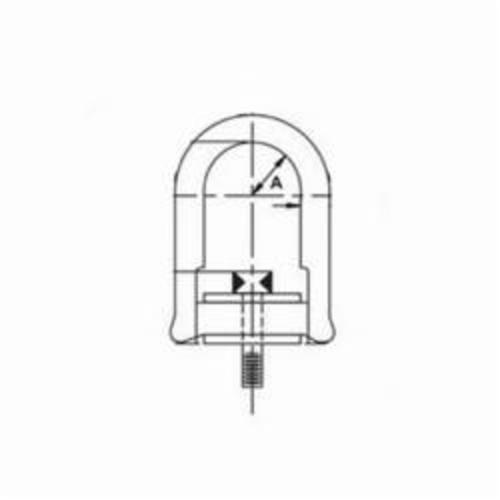

CM Hoist Ring, Heavy Duty, 1000 lb Load, 180 deg Pivot Angle, 360 deg Swivel, 0.44 in Diameter Bail, 3/8-16 Thread, 12 ft-lb Installation Torque, Surface Mounting, 3.23 in L x 2.29 in W Dimensions

ITEM FEATURES:

• Economical forged ring is strong and impact resistant
• Pivots 180 deg and swivels 360 deg simultaneously
• Back and side pins constructed of one piece of forged alloy steel
• 100 percent magnetic particle inspected
• Bale and center body are closed-die forged to assure superior grain flow and consistent dimensional accuracy
• Large bale allows for use of a variety of hook sizes
• 5:1 design factor
• Used in the same manner as shoulder eye bolts, hoist rings pivot or swivel to provide a steady lift and maintain higher working load limits than shoulder eye bolts when lifting at angles
• 1.06 in bolt length
